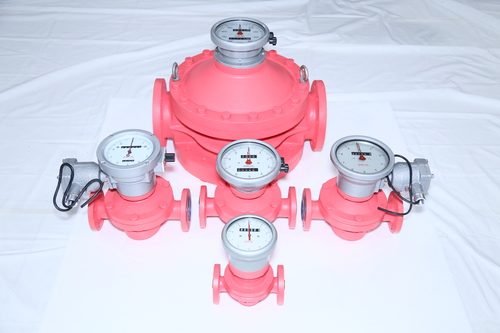

Mechanical fuel flow Meter

Mechanical fuel flow Meter
Mechanical fuel flow Meter
Product Code : Broil-05
Brand Name : Broiltech
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Mechanical oval gear flow meter

BT-RDOFM- line size

Broil sensotek industries, producer cast steel , cast iron, stainless steel and cast aluminium oval gear mechanical flow meter,


broil has variety of counter as per customer requirement


1) only cumulative total, no resettable total

2) cumulative total + resettable total

3) cumulative total + pulse output/4 to 20 mA output

4) cumulative total + resettable total

+ pulse output/4 to 20 mA output



Broiltech is producer of CE certified mechanical oval gear fuel flow meter for measuring flow of fuel, kerosene, Gasoline, diesel, light oil, heavy oil, petrol ,LDO, HDO, wine, bear, alcohol, milk, juice, coffee, tea, all chemical and pharmaceutical drug


BROILTECH brand fuel flow meter is high accuracy oval gear positive displacement flow meter.



Mechanical Fuel flow meter General Technical data:

CE certified product


Working principle: oval gear positive displacement

Accuracy (standard installation position) : 0.5% FSD/ 0.2 %fsd

Repeatability: 0.03%


Maximum working pressure: 2 MPa = 20 bar


Fluid &Ambient temperature: -40 to100°C

Viscosity : 1000 cps maximum


Material of construction:

Rotor and casing : cast iron / cast steel / stainless steel / aluminium

O-ring : NBR/VITON/SILICON

Shaft : Stainless Steel


Process connection: standard flange

Flow range: as on bellow model no wise table


line size : 15 mm, flow range : 0.15 to 1.5 m3/h

line size : 20 mm, flow range : 0.3 to 3.0 m3/h

line size : 25 mm, flow range : 1 to 6 m3/h

line size : 40 mm, flow range : 1.5 to 15 m3/h

line size : 50 mm, flow range : 2.4 to 24 m3/h

line size : 80 mm, flow range : 8 to 80 m3/h

line size : 100 mm, flow range : 10 to 100 m3/h

line size : 150 mm, flow range : 19 to 190 m3/h

line size : 200 mm, flow range : 34 to 340 m3/h




Major fluids: aluminum wetted part: kerosene, Gasoline, diesel, light oil, heavy oil






Trade Information
  • FOB Port
  • india
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • 1000 piece par month Per Month
  • Delivery Time
  • 1 Week
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • As per Client requirement
  • Main Domestic Market
  • All India
