Helical Rotor Flow Meter

Helical Rotor Flow Meter
Helical Rotor Flow Meter
Product Code : Broil-17
Brand Name : Broiltech
Product Specifications
  • Type
  • Flow Meter
  • Material
  • ss
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 1000 piece per month Per Month
  • Delivery Time
  • 1 Days
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • corrugated box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

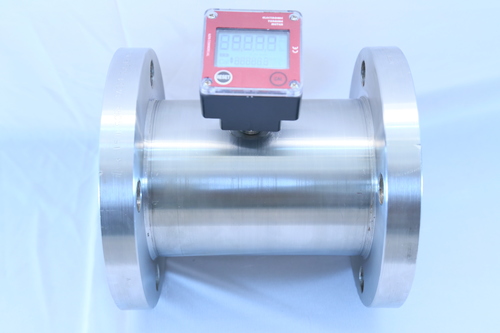

Helical flow sensor and meter

Helical flow meters are positive displacement meters with a very favorable low pressure drop behavior. therefore perfectly suited for the flow measurement of very high viscosity fluids.Due to wide measuring ranges, high accuracy and resolution helical flow meters are an excellent choice for laminating systems, painting systems, adhesive dispense systems,  as well as batching systems for various fluids.

 Helical flow sensor / meter General Technical data:

Material of construction:

Enclosure

S.S-304/S.S-316

Rotor

S.S-304/Titanium/ Aluminum anodized

Shaft

Hard Stainless Steel-316 with

carbon Bearing

Accuracy

+/- 0.5 or 1% FSD

Repeatability

0.1%

Maximum working pressure

6 MPa

Fluid &Ambient temperature

20 to 120 Deg. C

Connection

Thread (M/F) or flange



Pulse output sensor:

  • Power voltage: 12 V DC
  • Output signal:NPN open connector
Output high electric level:
  • High than 8 VDC( input voltage 12 VDC)
  • low electric level : lower than 0.8 VDC( input voltage 12 VDC)

Battery operated meter :

Power voltage 3.3 V10AH lithium batteries can be used more than 5 years in a row.

display mode:

  • Double row Liquid Crystal Display (LCD), as follows:
  • L XXX. X   four instantaneous flow (m3 / h) or L/h
  • XX. XXXXXX eight cumulative flow (m3) or L
  • Cumulative flow: automatically expand the display precision, the cumulative flow values can be reset.
  • Power-fail protection: instrument coefficient, the Total flow values ten years is not lost when power supply drop.
  • Display with 4 to 20 mA Output
  • Power voltage: 24 V DC
  • Output signal: 4 TO 20 mA

Turbine flow sensor model no wise Technical data:

Model no

Line size

Range

BT-HTFS-004

04 mm

40~400 L/H

BT-HTFS-012

12 mm

600~6000 L/H

BT-HTFS-025

25 mm

1000~10000 L/H

BT-HTFS-040

40 mm

2000~20000 L/H

BT-HTFS-050

50 mm

4000~40000 L/H

BT-HTFS-080

80 mm

10000~100000 L/H

BT-HTFS-100

100 mm

20000~200000 L/H

BT-HTFS-150

150 mm

30000~300000 L/H

BT-HTFS-200

200 mm

80000~800000 L/H

Features High accuracy

  • Pressure: up to 400 bar
  • Independent of viscosity, perfect for 1 to 106 mm²/s
  • Low pressure drop compared with other positive displacement meters

High resolution

  • Pulsation-free measurement, non-sensitive to pulsating flows
  • Resistant to corrosion by advanced materials and bearings

Applications

  • Polyurethane and polymer
  • Light and heavy fuel oil
  • Petrochemical products
  • Thixotropical fluids
  • Fat and oils with varying viscosities
  • Hydraulic test rigs with varying viscosities and fluids
  • Water / glycol mixtures
  • Crude oil, furnace oil, and all viscous liquid even viscosity change with Temperature
