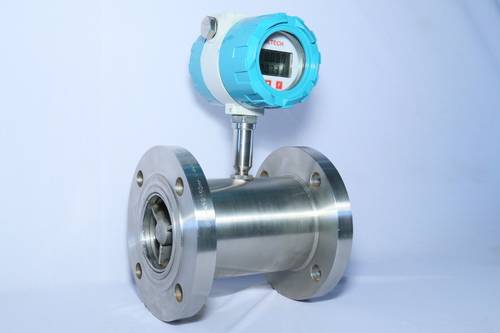

Fully Stainless Steel Turbine Flow Meter



<< Previous   Fully Stainless Steel Turbine Flow Meter
Product Description

Turbine flow sensor and meter:

Broil sensotek industries, producer of turbine flow meter with digital display battery operated, turbine flow sensor with pulse output and turbine flow meter with 4 to 20mA output,
Model no: BT- DTFS SS-LINE SIZE, Make: BROILTECH

Material of construction:

  • Enclosure : S.S-304/S.S-316
  • Rotor : S.S-304
  • Shaft : Hard Stainless Steel-316 with carbon bush
  • Accuracy (standard installation position) : /- 0.5 or 1% FSD
  • Repeatability :0.1%
  • Maximum working pressure : 6 MPa
  • Fluid &Ambient temperature: -20 to 120 Deg. C
  • Connection: Thread (M/F) or flange

 Battery operated meter :

  • Power voltage: 3.3 V10AH lithium batteries can be used more than 5 years in a row.
  • display mode:
  • Double row Liquid Crystal Display (LCD), as follows:
  • L XXX. X four instantaneous flow (m3 / h) or L/h
  • XX. XXXXXX eight cumulative flow (m3) or L
  • Cumulative flow: automatically expand the display precision, the cumulative flow values can be reset.
  • Power-fail protection: instrument coefficient, the Total flow values ten years is not lost when power supply drop.

Display with 4 to 20 mA Output

  • Power voltage: 24 V DC
  • Output signal: 4 TO 20 mA

Turbine flow sensor model no wise Technical data:

 BT-DTFS-004 , 40~400 L/H 2) BT-DTFS-012, 600~6000 L/H
 BT-DTFS-025 , 1000~10000 L/H 4) BT-DTFS-040, 2000~20000 L/H
 BT-DTFS-050, 4000~40000 L/H 6) BT-DTFS-080, 10000~100000 L/H
 BT-DTFS-100, 20000~200000 L/H 8) BT-DTFS-150, 30000~300000 L/H
 BT-DTFS-150 , 80000~800000 L/H

Product Code : BTDTFS      Brand Name :Broiltech

Price And Quantity
Minimum Order Quantity : 1
Product Specifications
Type : Flow Meter
Trade Information
FOB Port : india
Payment Terms : Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability : 100 piece per month Per Month
Delivery Time : 10 Days
Sample Policy : If order is confirmed we will reimburse the sample cost
Packaging Details : corrugated box
