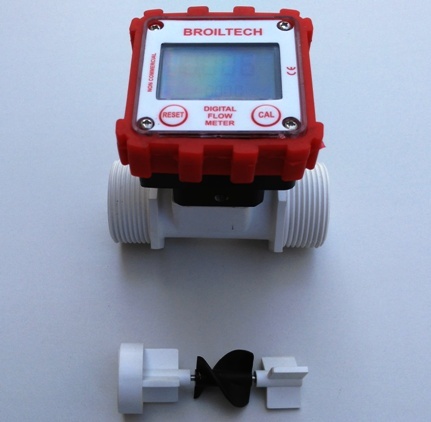

Digital Water Meter



Digital Water Meter   Next >>
Product Description

Digital water  meter- Plastic

Broil sensotek industries, producer of turbine flow meter with digital display battery operated, turbine flow sensor with pulse output and turbine flow meter with 4 to 20mA output,

  • Model no: BT- DFS-D
  • Make: BROILTECH

Material of construction:

Enclosure

POM/PA66+33GF

Rotor

POM/PA66+33GF

O-ring

NBR/Viton

Shaft

Hard Stainless Steel-316

Accuracy (standard installation position)

±1% to 2% FSD

Repeatability

0.5%

Maximum working pressure

1 MPa   for aluminum body

Fluid &Ambient temperature

-40 to90°C

Power voltage Battery operated

  • Connection: Thread (M)
  • Pulse output sensor :
  • Power voltage: 5 - 24V DC / Battery operated
  • Output signal: NPN open collector : 5 -24 vdc

Output:

  • high electric level : less than 4.5 VDC( input voltage 5 VDC)
  • low electric level : higher than 0.5 VDC( input voltage 5 VDC)
  • Connection: 3/4 BSP Thread (M)Power voltage: 4.5 TO 24 V DC

Battery operated meter:

Electronic Display counter future :

  • Type: microprocessor base fully programmable display
  • Power supply : battery operated
  • Display: 4 parameter LCD display
  • First parameter : flow rate 4 digit
  • Second parameter: grand total 10 digit
  • Third parameter : batch total 10 digit resettable
  • Calibration: online auto calibration

flow sensor model no wise Technical data:

Model no

Line size

Range


BT-DFS-100

4mm

1/4 Thread

0.15~3L/M

BT-DFS-200

12mm

Thread

0.5~25L/H

BT-DFS-300

18mm

3/4 Thread

1~60L/M

BT-DFS-400

25 mm

1Thread

2~80L/M

BT-DFS-500

32 mm

1.25 Thread

5~120L/H

BT-DFS-600

40 mm

1.5Thread

7~2,00L/H

BT-DFS-700

50 mm

2 Thread

10~500L/H

Product Code : Broil-22      Brand Name :Broiltech

Price And Quantity
Minimum Order Quantity : 1
Unit of Measure : Piece/Pieces
Trade Information
FOB Port : Ahmedabad
Payment Terms : Cash in Advance (CID), Telegraphic Transfer (T/T)
Supply Ability : 10000 pieces par month Per Month
Delivery Time : 1 Days
Sample Policy : If order is confirmed we will reimburse the sample cost
Packaging Details : corrugated box
Main Export Market(s) : Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market : All India
