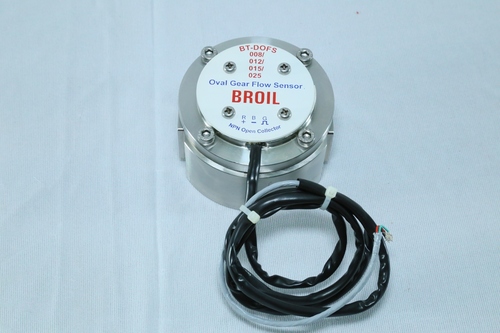

Diesel Fuel Flow Sensor

Diesel Fuel Flow Sensor
Diesel Fuel Flow Sensor
Product Code : Broil-54
Brand Name : Broiltech
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 1000 piece par month Per Month
  • Delivery Time
  • 1 Week
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • corrugated box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Positive displacement oval gear Flow Sensor :

Broiltech is producer of CE certified oval gear flow sensor for measuring flow of fuel, kerosene, Gasoline, diesel, light oil, heavy oil, petrol ,LDO, HDO, wine, bear, alcohol, milk, juice, coffee, tea, all chemical and pharmaceutical drug

 BROILTECH brand fuel flow sensor is high accuracy oval gear positive displacement flow sensor, its provide voltage pulse output against fuel flow qty.

  • Fuel flow sensor also available with optional analogue and digital battery operated display its called fuel flow meter
  • Fuel flow sensor available from minimum line size 6 mm to maximum line size 150 mm,
  • Fuel flow sensor flow range start from 2 litter/hour to 1, 50,000 litter/hour,
  • Fuel flow sensor available with NPN open connector and reed switch base pulse output

Fuel flow sensor General Technical data:

CE certified product

  • Working principle: oval gear positive displacement
  • Accuracy (standard installation position) : ±0.1% FSD or 0.5%RS
  • Output signal: NPN Open collector : 5 vdc to 24 v dc
  • REED switch : 30 vdc

Maximum working pressure

  • 5 MPa = 50 bar for aluminum body
  • 25 MPa = 250 bar for s.s. body
  • above 250 bar please contact company

Fluid &Ambient temperature: -40 to80°C

Power voltage: 3 - 24V DC

Material of construction:

  • Rotor and casing : Aluminum anodize/ PPS/S.S-316
  • O-ring: NBR/VITON/SILICON
  • Shaft: Stainless Steel/ hastelloy
  • Process connection : standard thread or flange as per model no wise
  • Flow range : as on bellow model no wise table

Fuel flow sensor model no wise Technical data:

  • BT-DOFS-004 --- 4mm -1/4Thread--- 0.2~60L/H ---0.000416 L/P
  • BT-DOFS-006 --- 6mm -1/4Thread--- 5~150L/H ---0.000661 L/P
  • BT-DOFS-008 --- 8 mm-3/8Thread--20~300L/H---0.0025 L/P
  • BT-DOFS-012---12 mm-1/2Thread---50~1200L/H---0.0025 L/P
  • BT-DOFS-020---20 mm-3/4 Thread---150~2,000L/H---0.0154 L/P
  • BT-DOFS-025---25 mm-1 Thread--200~4,000L/H---0.0256 L/P
  • BT-DOFS-040--40 mm- 1.5Flange--500~10,000L/H---0.086 L/P
  • BT-DOFS-050--50 mm- 2Flange--600~20,000L/H---0.19 L/P
  • BT-DOFS-080--80 mm Flange--1,000~50,000L/H---0.54 L/P
  • BT-DOFS-100--100 mm Flange--2,000~100,000L/H---1.0 L/P
  • BT-DOFS-150--150 mm Flange--5,000~150,000L/H---3.2 L/P^
  • Major fluids : aluminum wetted part : kerosene, Gasoline, diesel, light oil, heavy oil
  • s.s wetted part : wine, bear, alcohol, milk, juice, coffee, tea
  • pps wetted part : for all chemical and pharmacy drug
